EUROPE: Survey firm Adede identifies the four stages of dealing with unexploded ordnance (UXO) at a typical offshore project.

by David Weston 3 September 2015

  • Seabed is initially scanned using AUVs (pictured) or sonar

    Seabed is initially scanned using AUVs (pictured) or sonar

  • A sonar image of a mine (centre)

    A sonar image of a mine (centre)

  • ROVs are used to free and inspect objects needing further investigation

    ROVs are used to free and inspect objects needing further investigation

  • Diver inspections are also occasionally carried out, where necessary

    Diver inspections are also occasionally carried out, where necessary

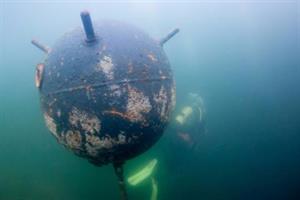

  • Underwater image of the mine shown in sonar image

    Underwater image of the mine shown in sonar image

  • A diver escorts a bomb from a shallow nearshore area

    A diver escorts a bomb from a shallow nearshore area

  • If removal is not possible destruction of the mine takes place

    If removal is not possible destruction of the mine takes place

of

Adede has experience of working on offshore wind projects. The first stage is historical research to establish a risk mitigation strategy and a survey technique suited to locate the type of UXO that poses a threat in the project area.

The second stage consists of a combined remotely operated towed vehicle (ROTV) magnetometry/side scan sonar survey for deep areas and a similar survey by autonomous underwater vehicles (AUV) for shallow or confined sections of the project area.

Survey data will result in a preselection of targets that will be inspected by ROV or by a diver, depending on circumstances at the location.

If UXO is found, it can either be removed or detonated on site by means of a charge placed by ROV or a diver. Depending on the circumstances a cable reroute could be advised as well, whatever is most cost effective.

See more pictures at adede.com.
